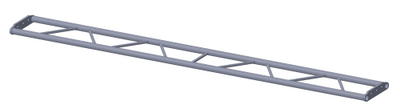

L-TL Two-tube Truss Modeling Structure Truss

L-TL Two-tube Truss

Technical Specifications

Height 40mm
Width 180mm
Main Tube 32 X 2mm
Sub Tube 12mm Soild Tube
Material

EN AL-6061 T6(?)

Appearance Anodizing light, can be customized
Connect Method Screw or conical connection
Connection Can be connect with L Series
Description Can be used for the border of the projector screen / guardrail / shape use

Size

Product Length
L-TL200 200cm
L-TL100 100cm
L-TL80 80cm
L-TL50 50cm
L-TL10 10cm

Sample

*

*

Remarks

Can be customized
