L-TS Square Truss Modeling Structure Truss

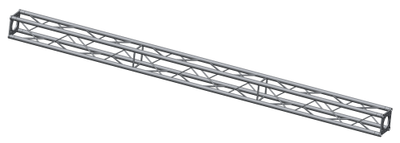

L-TS Square Truss

Technical Specifications

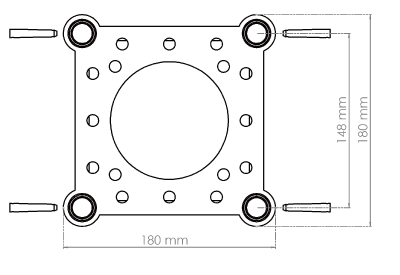

Height 180mm
Width 180mm
Main Tube 32 X 2mm
Sub Tube 12mm Soild Tube
Material

EN AL-6061 T6(?)

Appearance Anodizing light, can be customized
Connect Method Screw or conical connection
Connection Can be connect with L/M/A-F Series

Size

Product Length
L-TS300 300cm
L-TS250 250cm
L-TS200 200cm
L-TS180 180cm
L-TS150 150cm
L-TS100 100cm
L-TS80 80cm
L-TS75 75cm
Product Length
L-TS64 64cm
L-TS50 50cm
L-TS32 32cm
L-TS25 25cm
L-TS20 20cm
L-TS14 14cm
L-TS10 10cm

Specification

Remarks

Can be customized
